spring cloud实践(八) elk

当服务扩展后，每次排查问题需要到多台机器查看日志；这是一个非常麻烦的问题，我们需要一个统一查看日志的地方。

ELK是一个日志集中平台，其组成为elastic search，logstash，kibana。其中es作为日志存储，logstatsh作日志收集，kibana作为可视化页面展示。logstash通常和filebeat共同使用，由filebeat收集本地日志再发送到logstash。

filebeat也可以不经过logstash直接存储到es进行展示。

ELK

在之前一篇博文中，已搭建es，这里稍作修改方便定位es。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
version: '3'
services:
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch:6.7.0
    container_name: elasticsearch
    # 增加 hostname
    hostname: elasticsearch
    networks:
      - default
      - elk
    ports:
      - "9300:9300"
      - "9200:9200"
networks:
  elk:
    external: true
kibana

同样修改kibana的docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
version: '3'
services:
  kibana:
    image: docker.elastic.co/kibana/kibana:6.7.0
    container_name: kibana
    # 增加hostname
    hostname: kibana
    networks:
      - default
      - elk
    ports:
      - "5601:5601"
    environment:
      SERVER_NAME: localhost
      SERVER_PORT: 5601
      # 使用elasticsearch代替之前的ip
      ELASTICSEARCH_HOSTS: http://elasticsearch:9200
networks:
  elk:
    external: true
logstash

docker-compose.yml文件如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
version: '3'
services:
  logstash:
    image: docker.elastic.co/logstash/logstash:6.7.1
    container_name: logstash
    hostname: logstash
    networks:
      - default
      - elk
    volumes:
      - ~/logs:/app/logs
      - ~/otherapps/logstash/test-pipeline.conf:/usr/share/logstash/pipeline/test-pipeline.conf
networks:
  elk:
    external: true

同时配置pipeline：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
input {
  file {
    path => "/app/logs/*.json"
    codec => "json"
  }
}
output {
  stdout {
    codec => rubydebug
  }
  elasticsearch {
    hosts => "elasticsearch:9200"
    index => "logstash"
  }
}
json日志

配置producer和consumer项目，增加json日志输出。

spring boot 默认使用logback进行日志记录，这里则添加相应的logstash encoder。

  • 新增依赖
1
2
3
4
5
<dependency>
  		<groupId>net.logstash.logback</groupId>
 			<artifactId>logstash-logback-encoder</artifactId>
  		<version>5.3</version>
</dependency>
  • 配置logback
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
<?xml version="1.0" encoding="UTF-8"?>
<configuration>
	<include resource="org/springframework/boot/logging/logback/defaults.xml"/>

	<springProperty scope="context" name="springAppName" source="spring.application.name"/>
	<!-- Example for logging into the build folder of your project -->
	<property name="LOG_FILE" value="～/logs/${springAppName}"/>

	<!-- You can override this to have a custom pattern -->
	<property name="CONSOLE_LOG_PATTERN"
			  value="%clr(%d{yyyy-MM-dd HH:mm:ss.SSS}){faint} %clr(${LOG_LEVEL_PATTERN:-%5p}) %clr(${PID:- }){magenta} %clr(---){faint} %clr([%15.15t]){faint} %clr(%-40.40logger{39}){cyan} %clr(:){faint} %m%n${LOG_EXCEPTION_CONVERSION_WORD:-%wEx}"/>

	<!-- Appender to log to console -->
	<appender name="console" class="ch.qos.logback.core.ConsoleAppender">
		<filter class="ch.qos.logback.classic.filter.ThresholdFilter">
			<!-- Minimum logging level to be presented in the console logs-->
			<level>DEBUG</level>
		</filter>
		<encoder>
			<pattern>${CONSOLE_LOG_PATTERN}</pattern>
			<charset>utf8</charset>
		</encoder>
	</appender>

	<!-- Appender to log to file -->
	<appender name="flatfile" class="ch.qos.logback.core.rolling.RollingFileAppender">
		<file>${LOG_FILE}</file>
		<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
			<fileNamePattern>${LOG_FILE}.%d{yyyy-MM-dd}.gz</fileNamePattern>
			<maxHistory>7</maxHistory>
		</rollingPolicy>
		<encoder>
			<pattern>${CONSOLE_LOG_PATTERN}</pattern>
			<charset>utf8</charset>
		</encoder>
	</appender>

	<!-- Appender to log to file in a JSON format -->
	<appender name="logstash" class="ch.qos.logback.core.rolling.RollingFileAppender">
		<file>${LOG_FILE}.json</file>
		<rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
			<fileNamePattern>${LOG_FILE}.json.%d{yyyy-MM-dd}.gz</fileNamePattern>
			<maxHistory>7</maxHistory>
		</rollingPolicy>
		<encoder class="net.logstash.logback.encoder.LoggingEventCompositeJsonEncoder">
			<providers>
				<timestamp>
					<timeZone>UTC</timeZone>
				</timestamp>
				<pattern>
					<pattern>
						{
						"severity": "%level",
						"service": "${springAppName:-}",
						"trace": "%X{X-B3-TraceId:-}",
						"span": "%X{X-B3-SpanId:-}",
						"parent": "%X{X-B3-ParentSpanId:-}",
						"exportable": "%X{X-Span-Export:-}",
						"pid": "${PID:-}",
						"thread": "%thread",
						"class": "%logger{40}",
						"rest": "%message"
						}
					</pattern>
				</pattern>
			</providers>
		</encoder>
	</appender>

	<root level="INFO">
		<appender-ref ref="console"/>
		<!-- uncomment this to have also JSON logs -->
		<appender-ref ref="logstash"/>
		<appender-ref ref="flatfile"/>
	</root>
</configuration>
测试

启动测试，在 kibana 的 management中能找到logstash的es index，添加至kibana index，即可查看日志。

ELK + filebeat

logstatsh

修改 pipeline.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
input {
  beats {
    port => 5045
    type => beats
  }
}
output {
  stdout {
    codec => rubydebug
  }
  elasticsearch {
    hosts => "elasticsearch:9200"
    index => "logstash"
  }
}
filebeat

docker-compose.yml 如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
version: '3'
services:
  logstash:
    image: store/elastic/filebeat:6.7.1
    container_name: filebeat
    networks:
      - default
      - elk
    volumes:
      - ~/logs:/app/logs
      - ~/otherapps/filebeat/filebeat.yml:/usr/share/filebeat/filebeat.yml
      - ~/otherapps/filebeat/registry:/usr/share/filebeat/registry

networks:
  elk:
    external: true

filebeat.yml 如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
filebeat:
  inputs:
  - type: log
    paths:
      - /app/logs/*.json
  registry_file: /usr/share/filebeat/registry/mark

json.keys_under_root: true

output:
  logstash:
    hosts: ["logstash:5045"]

logging:
  files:
    rotateeverybytes: 10485760 # = 10MB
测试

同ELK相同展示。

kibana log

在kibana菜单栏有日志一栏，专门用来展示日志汇总。如需使用则对相关组件做如下修改。

filebeat

修改filebeat.yml，需新增模块。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
filebeat:
  inputs:
  - type: log
    paths:
      - /app/logs/*.json
  modules:
  - module: logstash
  registry_file: /usr/share/filebeat/registry/mark

json.keys_under_root: true

output:
  elasticsearch:
    hosts: ["elasticsearch:9200"]
#  logstash:
#    hosts: ["logstash:5044"]

setup.kibana:
  host: "kibana:5601"

logging:
  files:
    rotateeverybytes: 10485760 # = 10MB
测试

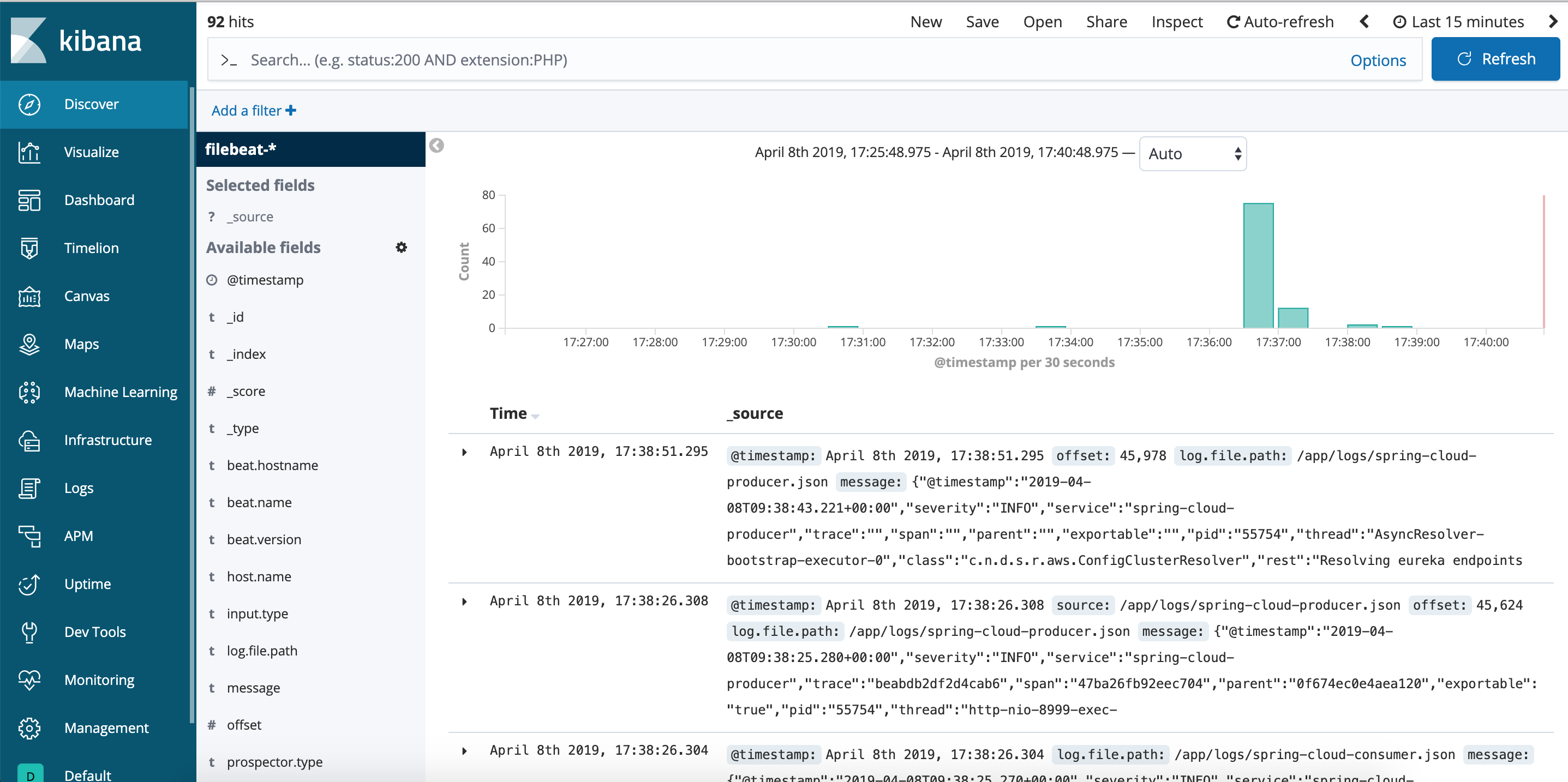

启动测试，在 kibana 的 management中能找到filebeat的es index，添加至kibana index，即可查看数据。

kibana-es-filebeat

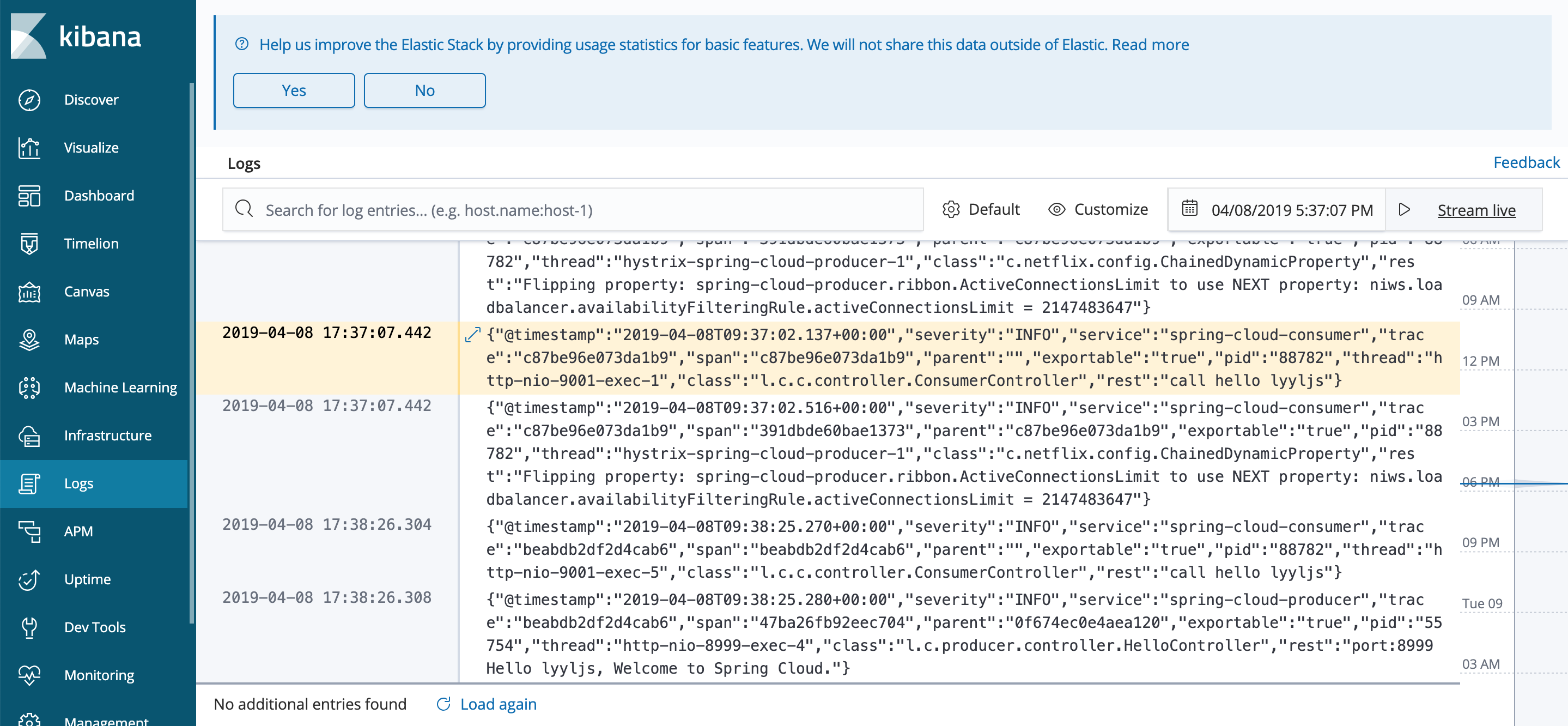

在logs里可查看日志。

kibana-logs
